The default firmware installed on Pebble Tracker wraps sensor readings in an MQTT message and sends one data message every 5 minutes to the IoTeX Real World Data Oracle Mainnet network.Alternatively, the firmware can be configured to send the data to the testnet oracle network by following the steps below:
Enter the firmware configurationPower on the device while pressing and keep pressing the down arrow until you see the firmware configuration menu.
Go to “System Settings”User the up/down arrow buttons to select the “System Settings” menu item to move between menu options. Shortly press the power button to confirm the selection.
Go to “Select Region”Go to the “Select Region” menu item and press the power button to confirm the selection.
Select the networkSelect the menu item that ends by “- M” to send the data to the Mainnet network, or select the menu item that ends by “- T” to send the data to the Testnet network.
Reboot the deviceUse the arrow buttons and the power button to select “Exit” in the menu until you get back to the initial menu, then select “Reboot Pebble.”

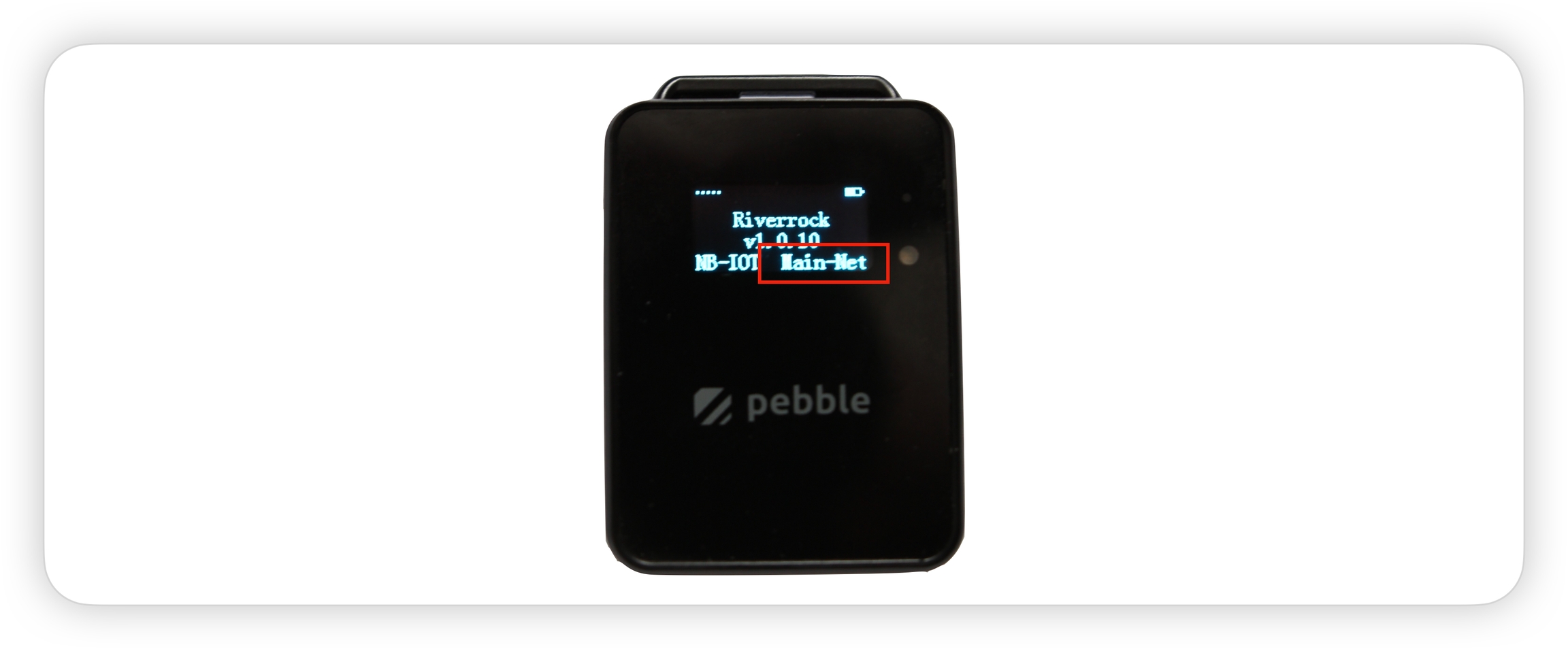

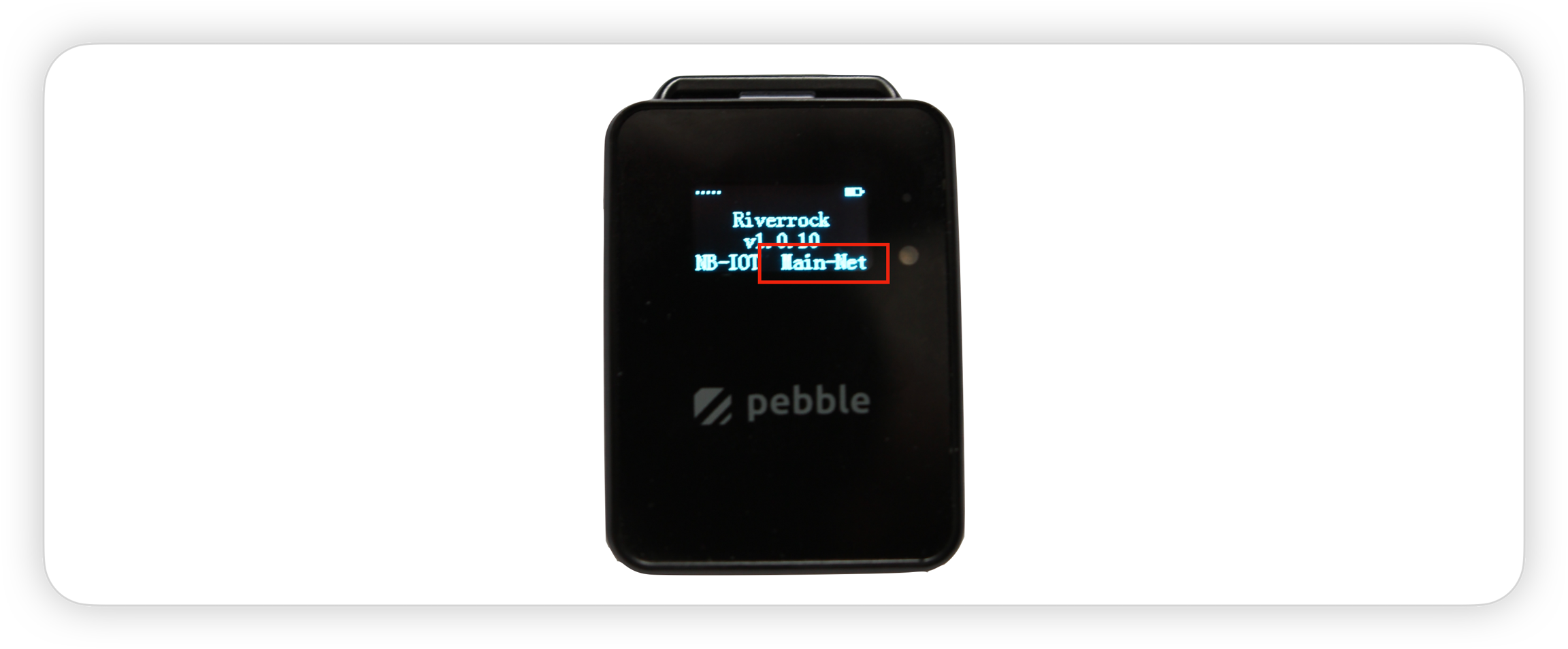

You can check the currently selected network on the display when Pebble is powered on and while it’s connecting to the network:
The former portal dashboards for mainnet and testnet have been discontinued. The portal URLs previously listed here no longer provide a way to view Pebble data. This page only explains how to select the device’s data network; it does not provide a replacement dashboard.
